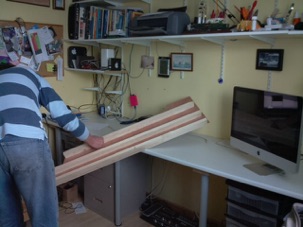

I’m playing trains again, after a break of about 50 years, by starting work on a layout that will eventually go round my room.

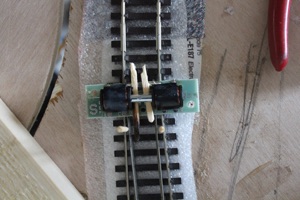

wiring for seep pm-1 point motor

Working Notes

July 2014: Remainder of points being motorised. All sorts of problems wiring up the double slip.  Key is to wire frogs to opposite point motor.

Operation

NB if power fails due to a short circuit reset by setting points in the following configuration.

Pt 1 up, Pt 5 up, Pt 3 up, Pt 4 down.

Pt 1

Pt 2

Pt 3

Pt 4

Pt 5

Pt 7

Pt 6

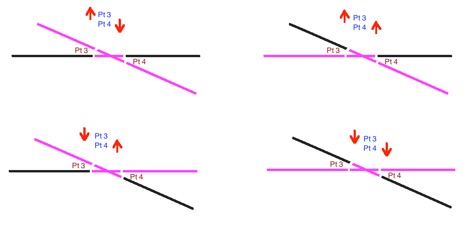

Operation of Double Slip

Momentous events:

18th November 2014 New loco Charlie purchased.  A 0-6-0 diesel shunter

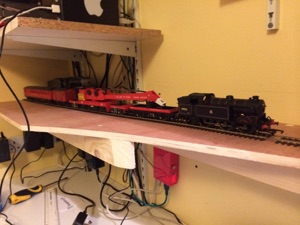

23rd Jan 2015 the full circuit of the room was achieved.  A scale distance of 705m, a lap of this circuit taking approx 40 seconds is equivalent to a scale speed of 40mph.
